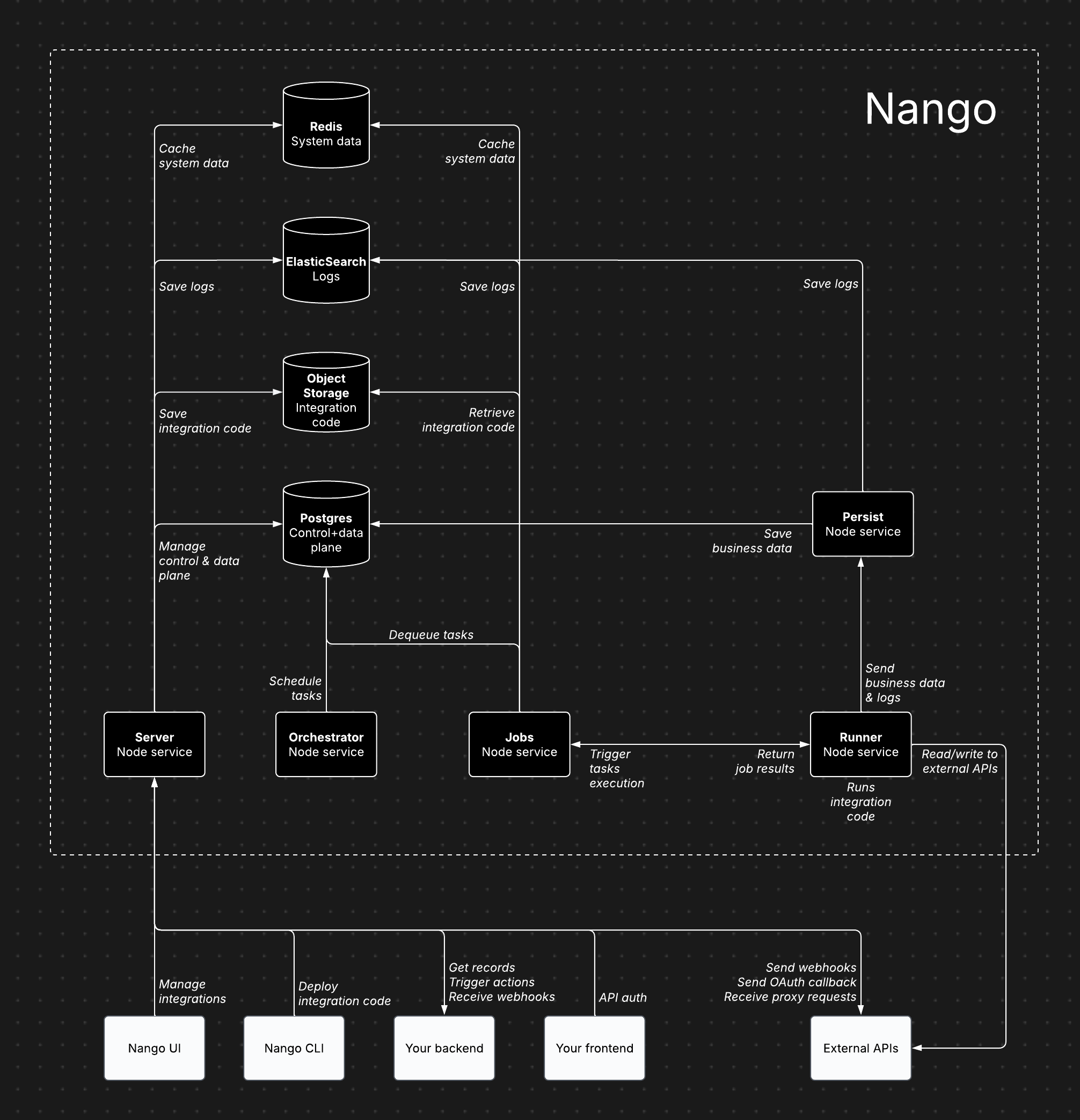

Architecture diagram

Nango's infrastructure components

​
Infrastructure components

Nango consists of several core services, each handling specific responsibilities:
  • Server (Node service): Powers the dashboard, API, proxy requests, and incoming/outgoing webhooks.
  • Orchestrator (Node service): Manages task scheduling and state tracking.
  • Jobs (Node service): Processes tasks and dispatches them to the Runner.
  • Runner (Node service): Executes integration code and interacts with external APIs.
  • Persist (Node service): Stores synced records and logs.
  • Postgres: Stores data for the control plane, API credentials, scheduled tasks, and synced records.
  • Object Storage (e.g. S3): Stores compiled integration code for execution by the Runner.
  • ElasticSearch: Stores execution data.
  • Redis: Caches system data, including socket information, token refresh locks, and rate limits.

​
Cloud vs. self-hosted architecture

The Nango architecture is largely the same for both Cloud and Enterprise self-hosting. This ensures self-hosted instances benefit from continuous dogfooding and load testing. The primary differences are:
  • In the Cloud version, the Runner service runs as isolated instances per customer.
  • The Postgres database is segmented by use case (control plane, task scheduling, synced records).

​
Email service

Nango uses emails for account verification, password reset, and sending invitations, etc… Any SMTP server can be configured to be used by Nango for these email communications.
